Pentek - 20" Big Blue Filter Housing HFPP - Black Cap / Blue Sump
HomeStore

Pentek - 20" Big Blue Filter Housing HFPP - Black Cap / Blue Sump

Pentek - 20" Big Blue Filter Housing HFPP - Black Cap / Blue Sump

Select Connection Size
Select Pressure Release (PR) Button
From $28.50

Original: $95.00

-70%
Pentek - 20" Big Blue Filter Housing HFPP - Black Cap / Blue Sump—

$95.00

$28.50

The Story

Big Blue filter housings offer the versatility to meet all of your large capacity filtration needs, including high-flow and heavy-sediment applications. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high flow-rate applications.
  • Large capacity housing suitable for high flow applications
  • Pressure-relief/bleed button on inlet side of cap
  • Accepts 4-1/2" diameter cartridges
The high-flow polypropylene (HFPP) cap is available with 3/4", 1", and 1.5 NPT inlet and outlet ports. Big Blue housings are compatible with a broad range of chemicals. They accept a wide variety of 4-1/2" diameter cartridges in 20" lengths.

Materials of Construction
  • Housing: Polypropylene
  • Cap: Polypropylene (HFPP)
  • Button Assembly: 300-series Stainless Steel, Polypropylene and EPDM
  • O-Ring: Buna-N
  • Maximum Temperature: 100°F (37.8°C)
  • Maximum Pressure: #20BB 90 psi (6.2 bar)
Pentek - 20" Big Blue Filter Housing HFPP - Black Cap / Blue Sump - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

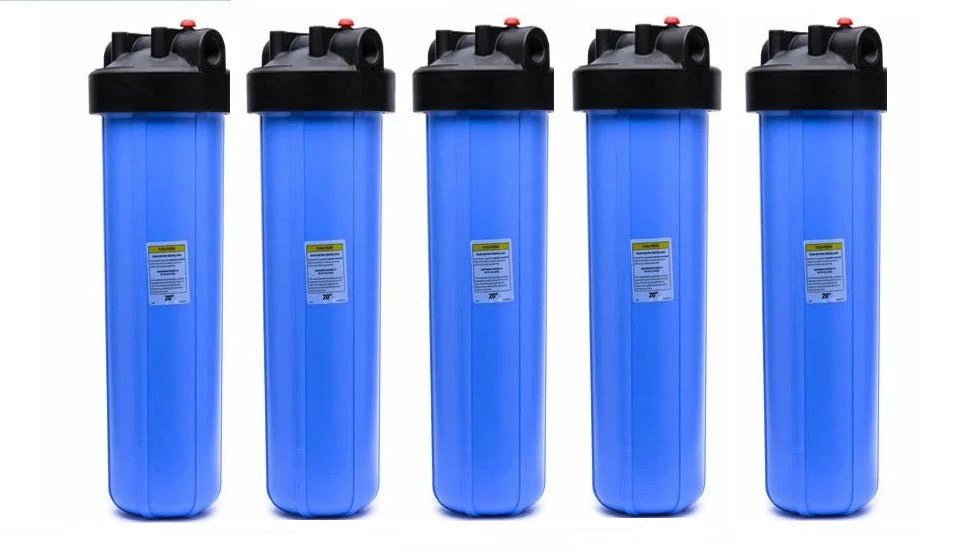

Pentek - 20" Big Blue Filter Housing HFPP - Black Cap / Blue Sump - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Big Blue filter housings offer the versatility to meet all of your large capacity filtration needs, including high-flow and heavy-sediment applications. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high flow-rate applications.
  • Large capacity housing suitable for high flow applications
  • Pressure-relief/bleed button on inlet side of cap
  • Accepts 4-1/2" diameter cartridges
The high-flow polypropylene (HFPP) cap is available with 3/4", 1", and 1.5 NPT inlet and outlet ports. Big Blue housings are compatible with a broad range of chemicals. They accept a wide variety of 4-1/2" diameter cartridges in 20" lengths.

Materials of Construction
  • Housing: Polypropylene
  • Cap: Polypropylene (HFPP)
  • Button Assembly: 300-series Stainless Steel, Polypropylene and EPDM
  • O-Ring: Buna-N
  • Maximum Temperature: 100°F (37.8°C)
  • Maximum Pressure: #20BB 90 psi (6.2 bar)
